Class 400

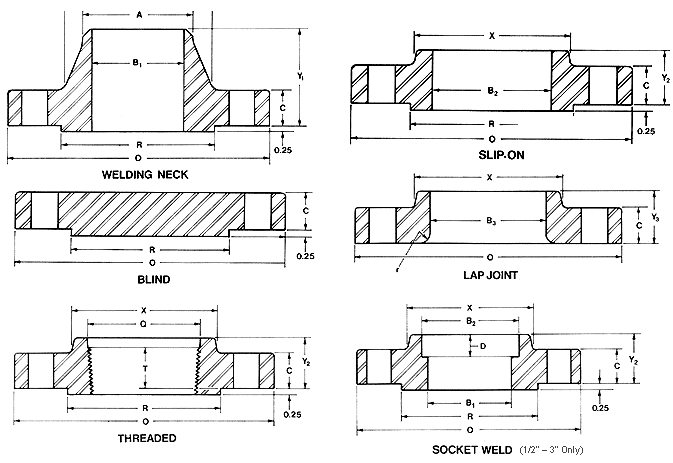

Thickness and length through hub do not include 1/4" raised face.
See 300 Class dimensions for dimensions "Q" and "D".

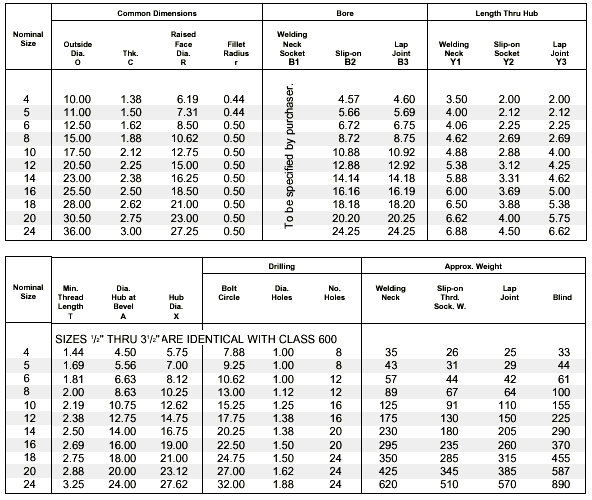

ASNI B16.5 Flanges Class 400
