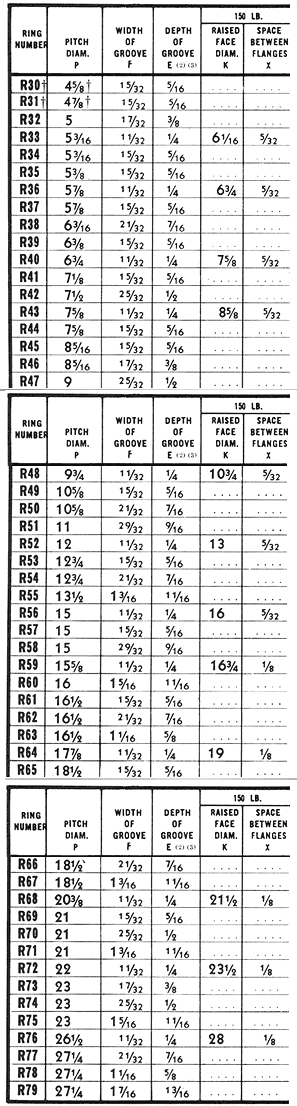

Ring Joint Flange Facing Dimensions


Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500
