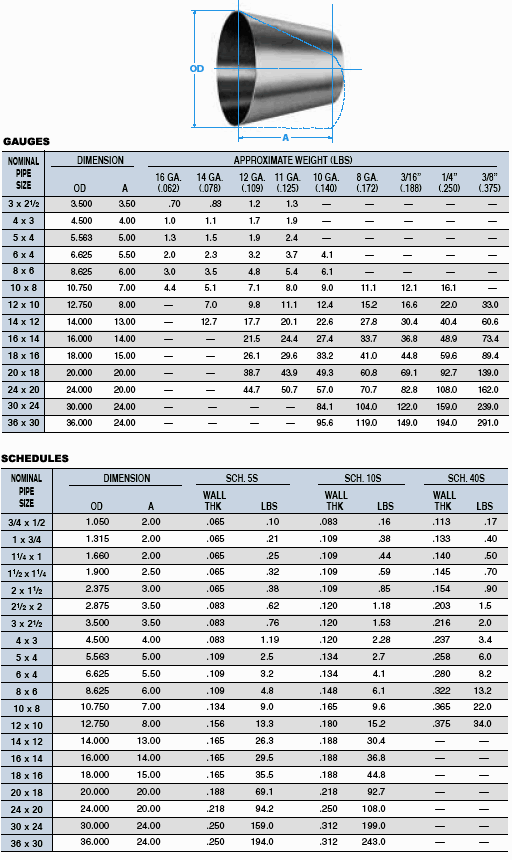

- Manufactured
in accordance to ASTM A-774 and A-403 specifications.
- Sizes
larger than 36” available on request.
- O.D.
and wall thickness are given in inches.
- Multiple
step reducers available on request.
- Concentric
and Eccentric Reducers weigh the same.
- Manufactured
to ANSI B16.9 dimensions.
- Tangent
reducers must be used when flanging, belling,
or roll grooving is required.
- Multiple
step reducers are manufactured to the same length
as standard reducers using the large OD dimensions
(Example 6”x3” = 51/2” Long)
|
|
Butt Weld Fittings
PMQ - Paper Mill Quality
